Model 6006 RZA Ku

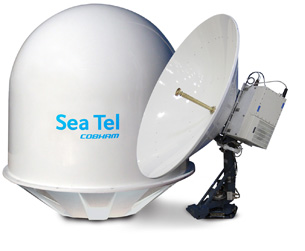

The 6006RZA Ku Antenna is similar to the 4006 with a larger 1.5-meter Ku-Band maritime VSAT antenna for SCPC, broadband, or hybrid networks.

Because of its size and power, the 6006RZA Ku features a higher transmit and receive gain (about 2 dB) which allows substantially increased thru-put connections depending on your data transfer requirements. The 6006RZA Ku is suitable for file and image transfer, video conferencing, e-mail, Virtual Private Networks (VPNs), and database backup.

The Sea Tel 06 Series utilizes the DAC 2202 Antenna Control Unit. The DAC 2202 is a 19 rack mount unit (1.75 tall) featuring: (3) RS-232/422 Serial Ports; (1) full function M&C and (2) NMEA ports for heading, GPS input and modem compatible, reformatted GPS output; (1) Ethernet port allowing (2) full-function TCP/ IP M&C ports; (1) multi-user HTML interface port for setting all DAC parameters and viewing the current DAC status; (1) UDP download port for updating software in the Comm Interface.
